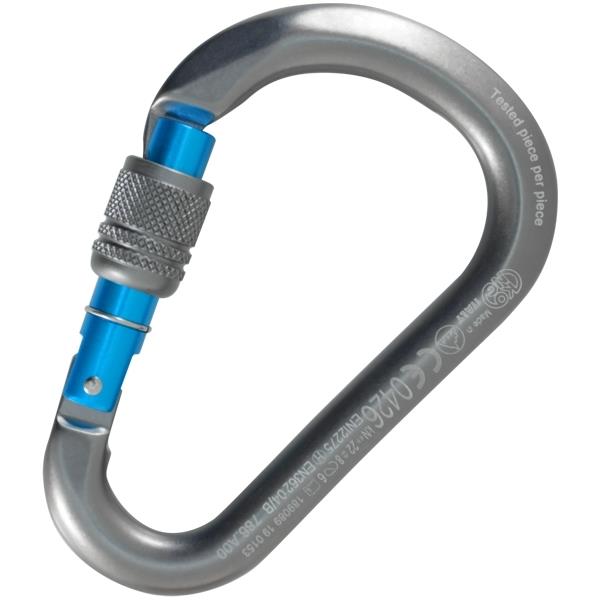

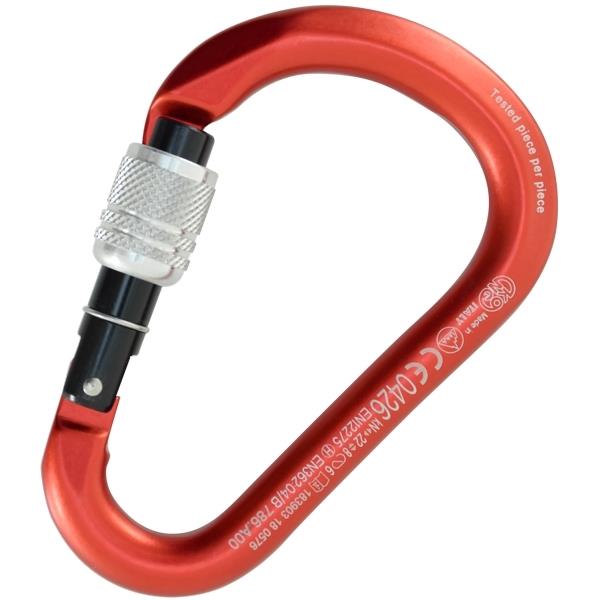

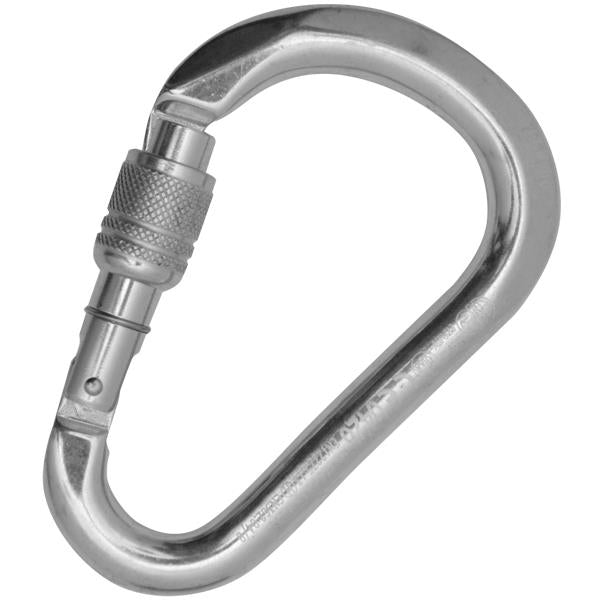

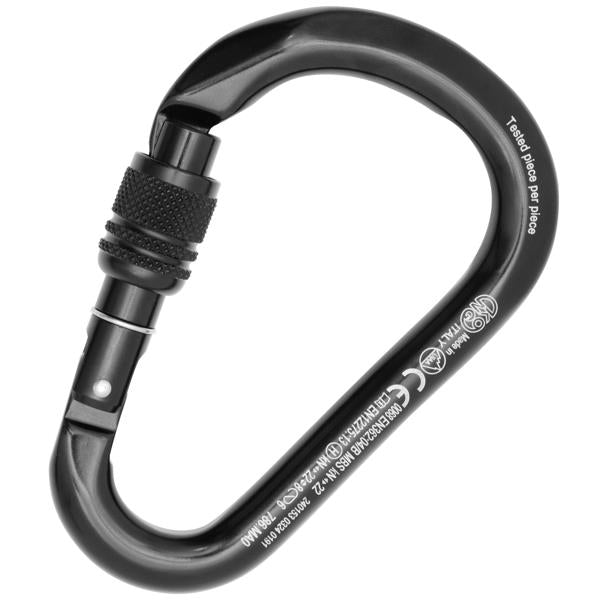

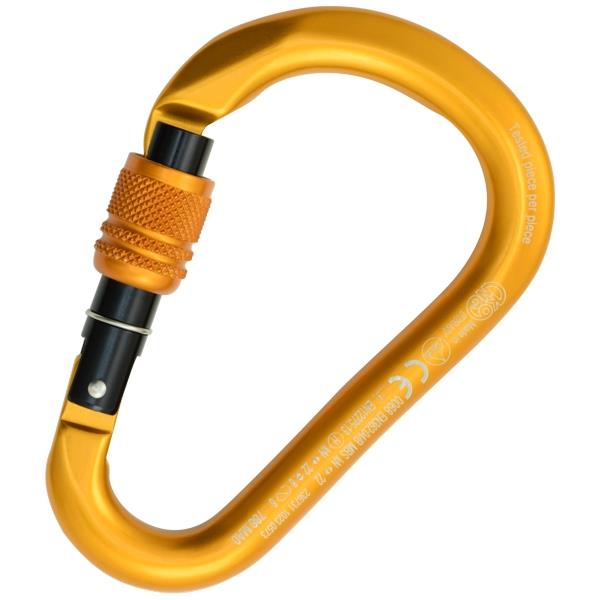

HMS CLASSIC SCREW SLEEVE

ALUMINUM ALLOY | SCREW SLEEVE | WIDE PEAR SHAPE

Aluminium connector with screw sleeve and Keylock system. The classic wide pear shape makes it suitable for belay with clove hitch. Can be used with all anchoring and belaying systems. Screw sleeve makes it suitable for professional use. Equipped with Keylock system that prevents any snagging with the rope and in the bolts. High quality product completely developed and produced in Italy. Tested piece by piece.

Standards - EN 12275, EN 362/B, UIAA, EAC
Material - Alu Alloy
Type - Keylock
Main Axis Load - 22kN
Minor Axis Load - 8kN
Open Gate Load - 6kN
Weight - 88g
Shape - H.M.S.

A. Length - 116mm
B. Width - 78mm
C. Body Diameter - 12mm
D. Eyelet Diameter - /
E. Gate Opening Diameter - 25mm

Sleeve - Screw
